德国JDT螺栓式可旋转吊点TAWGK型

您现在的位置:网站首页 >> 产品专区 >> 进口品牌旋转吊环 >> 详细内容

德国JDT螺栓式可旋转吊点TAWGK型

发布时间:2017-03-30  浏览:4225次  字号:

 德国JDT螺栓式可旋转吊点TAWGK
Boit-on attachment swivel,ball-bearing

德国JDT螺栓式可旋转吊点TAWGK型
可旋转吊点TAWGK,现在只提供极限工作载荷在25-30吨范围内的产品
优点:
-紧凑而坚固的结构
-在任何受力方向下均保证4倍安全系
-360度可不旋转
-采用球轴承
-负载时亦可转动。
The sling swlvels TAWGK are still svailable in working load limits of 25-30t.
The advantages:
-Compact and light design
-Secured four times against breadage in all load directions
-Rotates 360°
-Admissible swivel range of take-up link 180°
-Ball bearing
-Rotatable under load
The TAWGK will be replaced gradually by the new.>THEIPA point<.

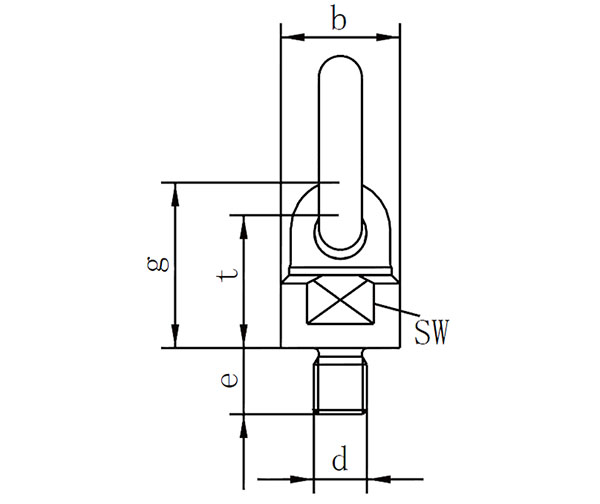

TAWGK 25-30
德国JDT螺栓式可旋转吊点TAWGK型

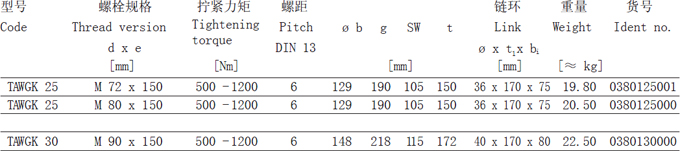

所有常见螺纹标准从英制到圆螺纹均可提供,也可提供符合您的特殊要求的螺纹尺寸。JDT的THEIPA Point系列及TAWGK系列均以Nm作为拧紧力矩的单位。在使用符合DIN 895 及DIN894 标准的扳手时,无需使用其他辅助工具即可方便实现安装与拆卸。
All normal threads available from inch system to round thread.Othreads can be supplied with different diameters and lengths.Tightening torques in NM for JDT swivel ring bolts Theipa Point(TP)/TAWGK.Tightening with open-ended spanner according toDIN 895 or 894 without the aid of an extension.
德国JDT螺栓式可旋转吊点TAWGK型

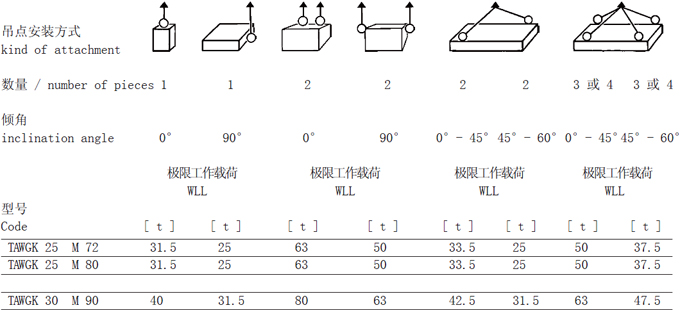

在非均匀对称起吊情况下,视双肢或3/4肢链条的极限工作载荷等同于单肢链条90度时的极限工作载荷。
In the case of an unsymmetrical load distribution,the lifting capacities applicable to the 2 and 3/4-leg slings are the same as for 1-leg types at 90°
